DC 12V Timing Delay Adjustable Relay Module
|
- Артикул:
- Наличие: 2
- Единица: шт.
|
|
|
DC 12V Timing Delay Relay Module for Smart Home Tachograph GPS PLC Control Industrial Control Electronic Experiment Arduino Robot etc.
Description
- brand new and high quality
- 12V delay turn on or delay off module
- 1. With 8 time ranges selected shortest 0.1s most up to 1 hour
- 2. Protection against power reversal protection diode, better protection module
- 3. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)
- 4. With delay adjustment potentiometer clockwise adjustment time longer

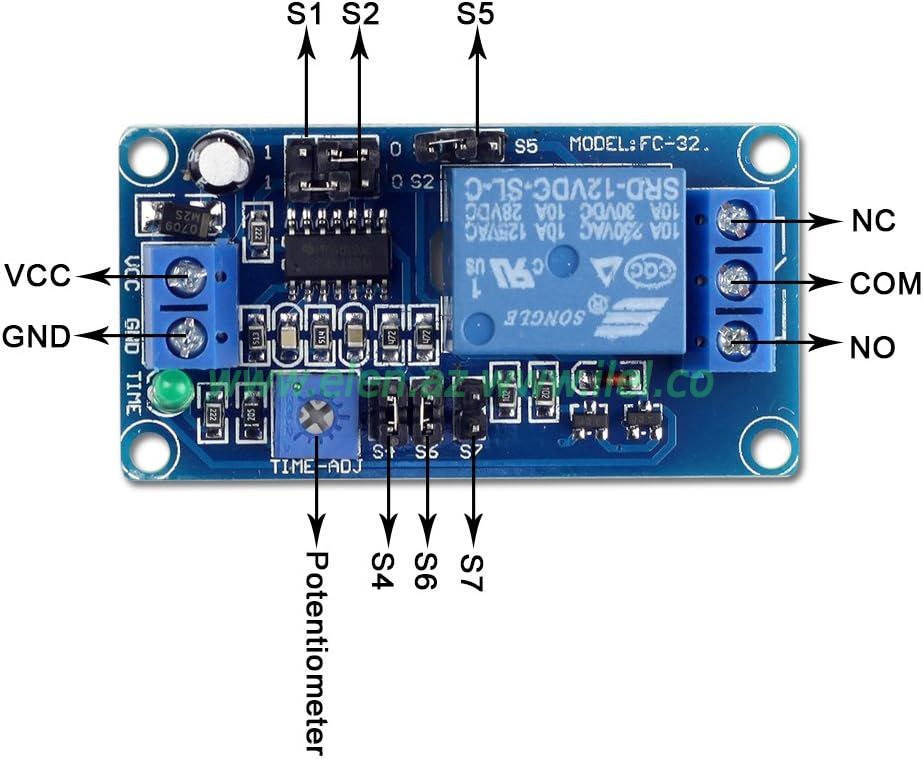

- Function:
- Plug On S6 ,delay turn off
- plug on s7, delay turn on
- Electrical parameter:
- Input Voltage: 12V
- Quiescent Dissipation: 5.5mA
- Maximum Power Consumption: 42mA
- Relay Load Capacity:
- 250V 10A AC (2500W ideal power AC)
- 30V 10A DC (300W ideal power DC)
- Size: 5.5*3cm/2.16*1.18"
- Quantity:1pc
Chips on board:
CD4541BM ---CMOS Programmable Timer High Voltage Types (20V Rating)
