2.54MM ZIF sockets 40pin,32pin,28pin,14pin

Рейтинг: 5.0/6

5.11 AZN

Производитель: TZT
Артикул:
Наличие: 5
Единица: шт.

Value: 14 32 40 28 Narrow

Купить сейчас

Option	ZIF sockets	Code
14	14pin	0222-ND12
32	32pin	0222-ND12
40	40pin	0551-ND08
28 Narrow	28p Narrow	0551-NB15

Product introduction:
This lock seat can be welded through furnace, good remote control elasticity, good locking effect,environmental protection,durable products.
Features:
•Compact mechanical construction to ensure long term life.
•Zero insertion and extraction pressure.
•Standard 0.100(2.54mm)IC pitch,easy to mount in PC board.
•All plastics are UL 94V-o grade fire retardant
•Gold plated contact to ensure low contact resistance and long operation life.

Specification Electrical:
•Rating:50VDC, 100mA
•Contact Resistance:50mOhm Max.
•Initial Resistance:100mOhm Min
•Dielectric withstanding volage:500VDC min.for 60 seconds. Capacitance between adjacent contacts.

Mechanical and enveronmental:
•Operating:-25°C+70°C
•Storage:-40°C+85°C
•Operating Life:50.000 cycles(without load)
Humidity:95% coverage
Seconds, 95% coverage
Soldering Heat:260±5°C for 5±1 Seconds
TZT Plastic: a+ nylon
Reed: Copper tinned

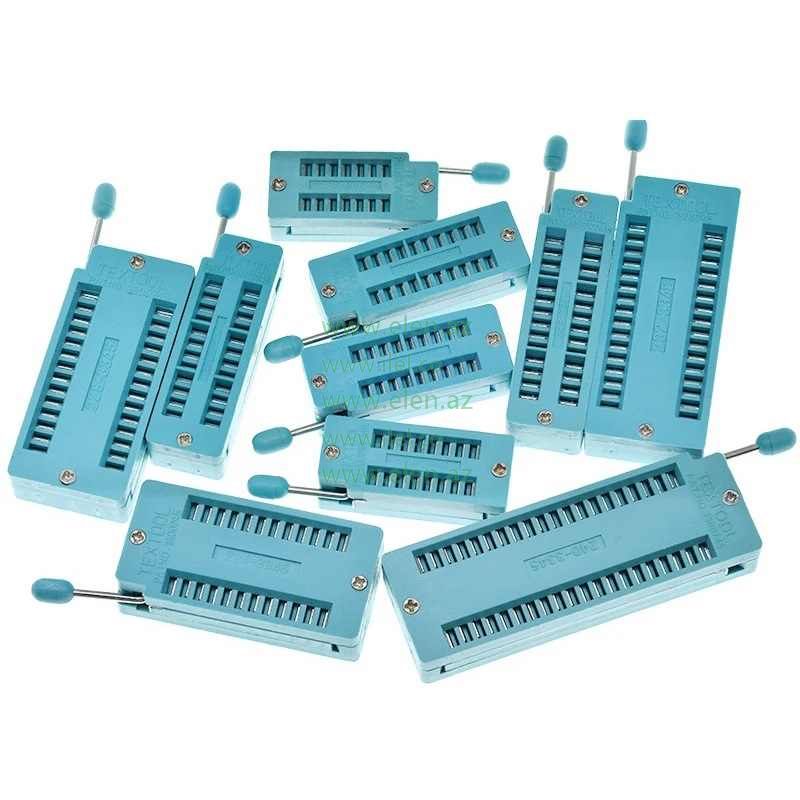

ZIF sockets

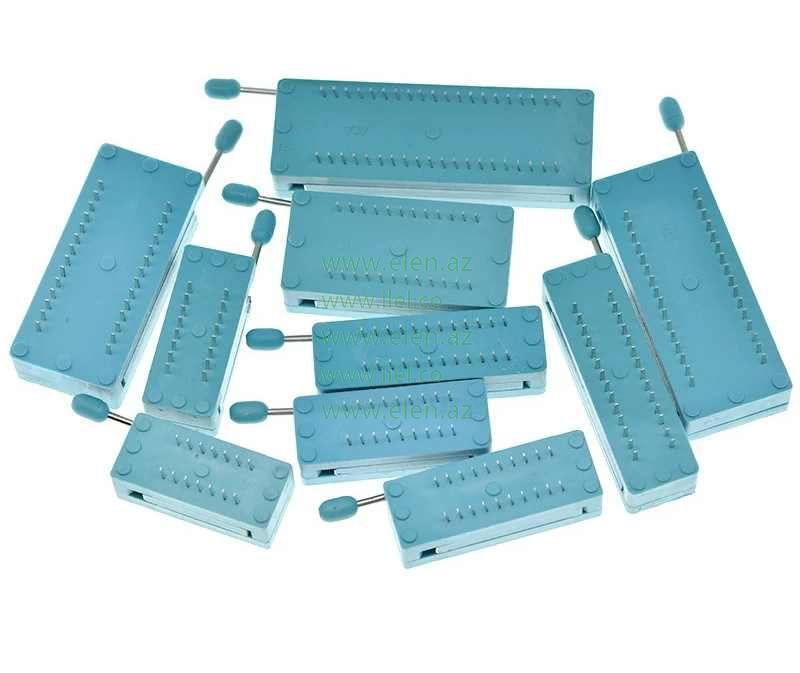

ZIF sockets botom
